Name: Master Thoroughfare Plan

Display Field: FULL_STREET_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: City of Sugar Land Thoroghfare Master Plan

Service Item Id: 7354e94680b84ae3a2d1e2f2e1ed52fc

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3011408.2381910533
YMin: 1.3746227295445234E7
XMax: 3060319.5478485525
YMax: 1.3805489974819899E7
Spatial Reference: 102740  (2278)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: FUNCTIONAL_CLASS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 1
Default Label: <all other values>
UniqueValueInfos:
• Value: <Null>
  Label: <Null>
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [248, 252, 182, 0]
  Width: 1
• Value: ARTERIAL
  Label: ARTERIAL
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 1
• Value: FRWY
  Label: FRWY
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [230, 0, 0, 255]
  Width: 2
• Value: LOCAL
  Label: LOCAL
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [248, 252, 182, 0]
  Width: 1
• Value: MAJ COLL
  Label: MAJ COLL
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 169, 230, 255]
  Width: 1
• Value: MIN COLL
  Label: MIN COLL
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [85, 255, 0, 255]
  Width: 1
• Value: OTHER
  Label: OTHER
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [248, 252, 182, 0]
  Width: 1
• Value: STATE
  Label: STATE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 127, 127, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FULL_STREET_NAME ( type: esriFieldTypeString, alias: FULL_STREET_NAME, length: 50 )
• ROAD_WIDTH ( type: esriFieldTypeString, alias: ROAD_WIDTH, length: 5 )
• SPEED_LlIMIT ( type: esriFieldTypeString, alias: SPEED_LlIMIT, length: 5 )
• ROAD_CLASS ( type: esriFieldTypeString, alias: ROAD_CLASS, length: 5 )
• SECTION_TYPE ( type: esriFieldTypeString, alias: SECTION_TYPE, length: 50 )
• TRANSIT ( type: esriFieldTypeString, alias: TRANSIT, length: 50 )
• SIDEWALK ( type: esriFieldTypeString, alias: SIDEWALK, length: 50 )
• HIKE_AND_BIKE ( type: esriFieldTypeString, alias: HIKE_AND_BIKE, length: 50 )
• SECTION_2035 ( type: esriFieldTypeString, alias: 2035_SECTION, length: 50 )
• RECOMMENDED_SECTION ( type: esriFieldTypeString, alias: RECOMMENDED_SECTION, length: 50 )
• HIERARCHY ( type: esriFieldTypeDouble, alias: HIERARCHY )
• MINUTES ( type: esriFieldTypeDouble, alias: MINUTES )
• FIRE_TRAVEL ( type: esriFieldTypeDouble, alias: FIRE_TRAVEL )
• LG_LENGTH ( type: esriFieldTypeDouble, alias: LG_LENGTH )
• LANE_NUMBER ( type: esriFieldTypeDouble, alias: LANE_NUMBER )
• LANE_LENGTH ( type: esriFieldTypeDouble, alias: LANE_LENGTH )
• LANE_MILE ( type: esriFieldTypeDouble, alias: LANE_MILE )
• FUNCTIONAL_CLASS ( type: esriFieldTypeString, alias: FUNCTIONAL_CLASS, length: 10 )
• BLOCK_NUM ( type: esriFieldTypeString, alias: BLOCK_NUM, length: 10 )
• LIFE_CYCLE ( type: esriFieldTypeString, alias: Life Cycle, length: 20 , Coded Values: [Active: Active] , [Retired: Retired] , [Out of Service: Out of Service] , ...3 more... )
• ASSETID ( type: esriFieldTypeString, alias: ASSETID, length: 20 )
• RR_Wd_1 ( type: esriFieldTypeSmallInteger, alias: RR_WD_1 )
• RR_WD_2 ( type: esriFieldTypeSmallInteger, alias: RR_WD_2 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

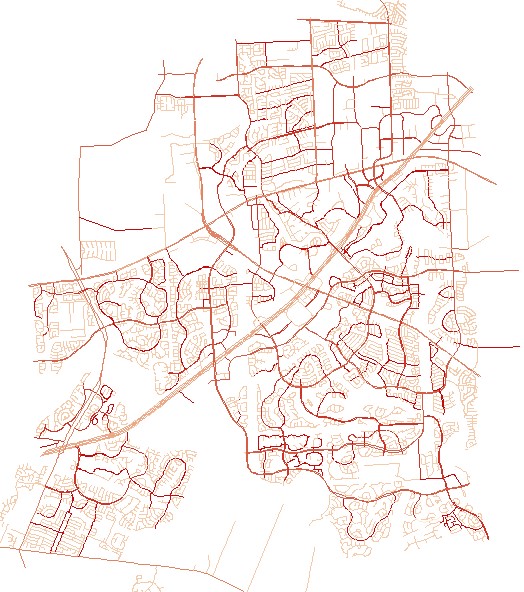

  Iteminfo   Thumbnail   Metadata
